FCST02296 Terminal de acesso à fibra
FCST
FCST-ACC FTTH Drop Wire Suspension Clamp
Product Overview

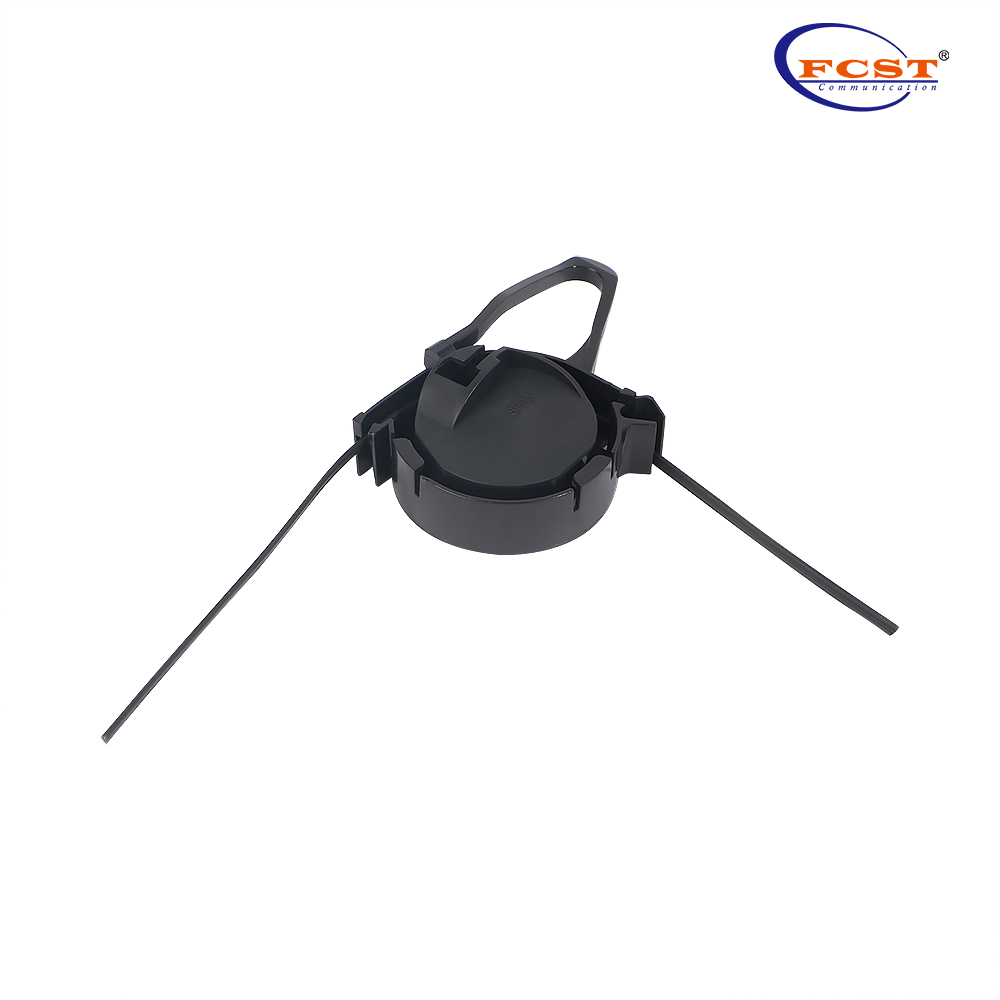

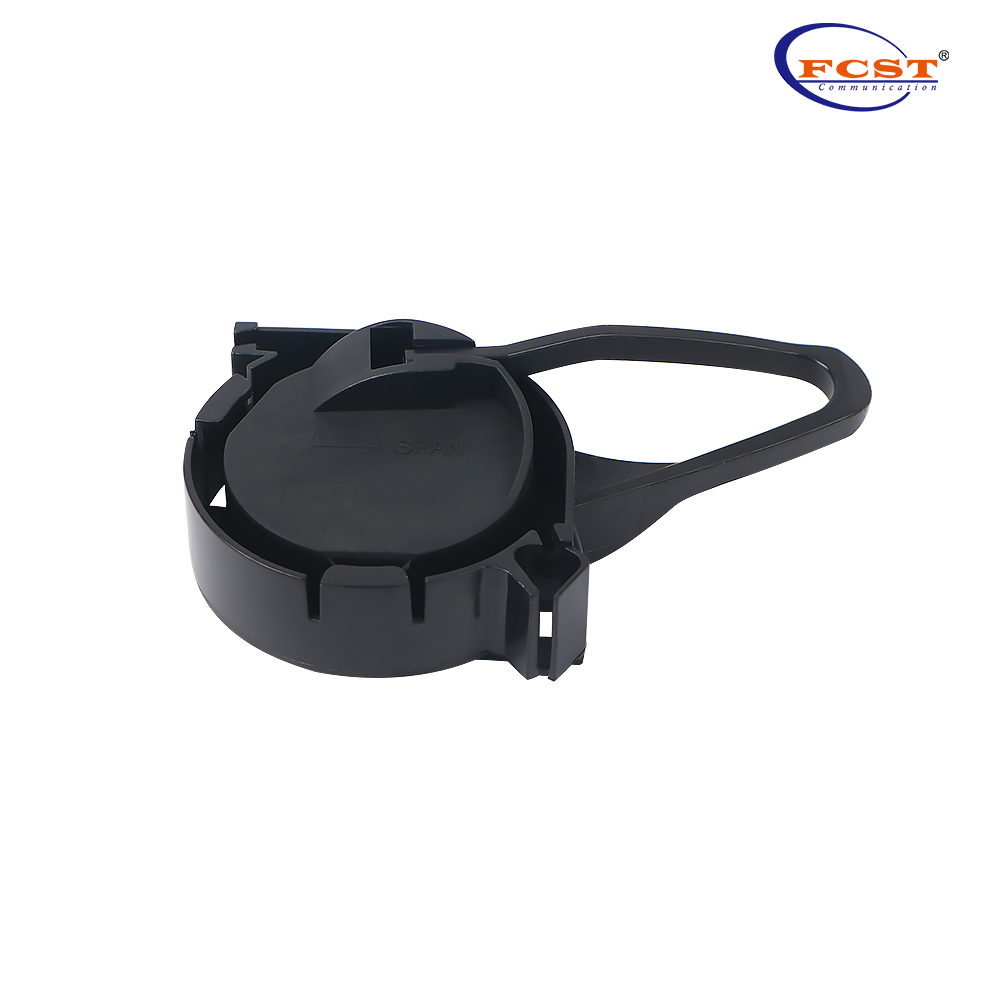

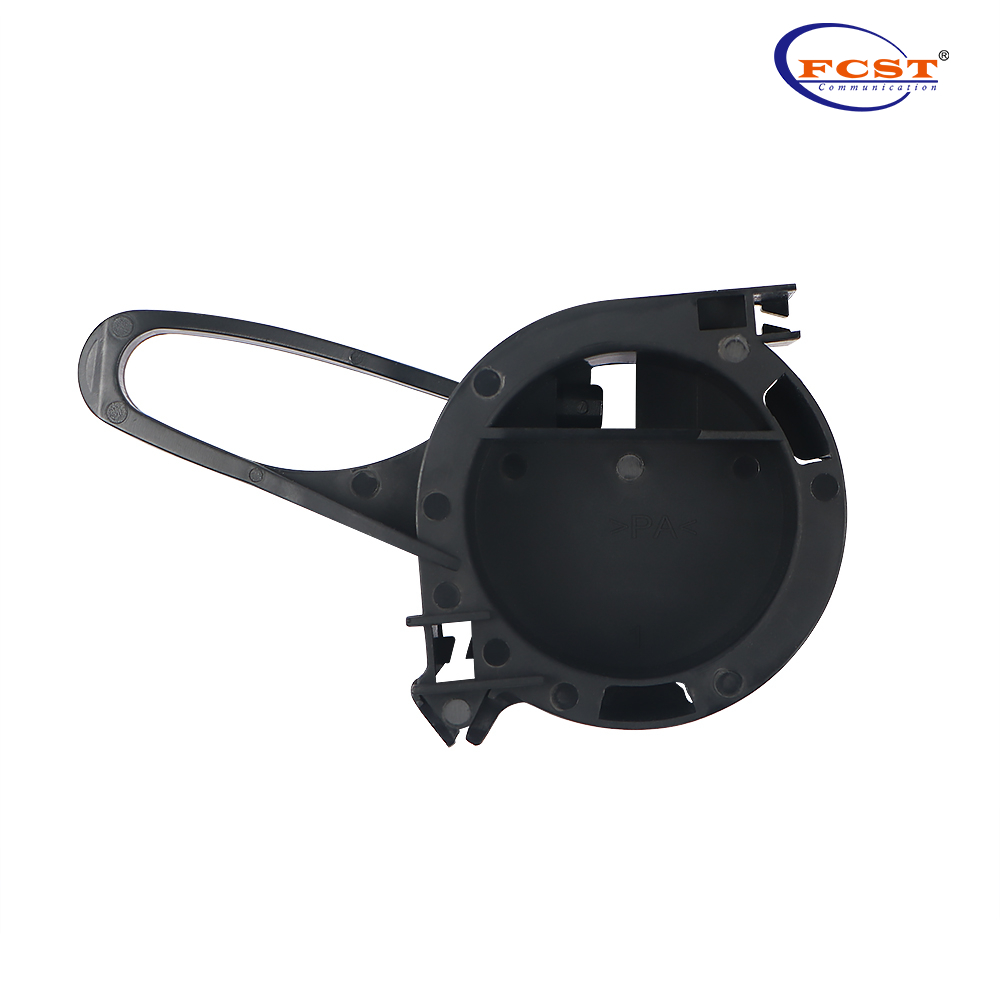

It is intended for suspension of flexible subscriber cables FTTH with optical fiber. It consists of a round (heart-shaped) body and an open bow-duck that can be securely clamped into the clamping body. The clamp is made of PA66 nylon.Used as an anchorage of a flexible cable on the end support (on poles, buildings). When using two clamps, suspension is carried out on intermediate supports.
The unique patented design allows the anchoring of the cable on the end support without any radial pressure on the cable and fiber and provides additional protection for the FTTH cable.
Product Advantages
l Dead-ending of round drop cable on poles and buildings.

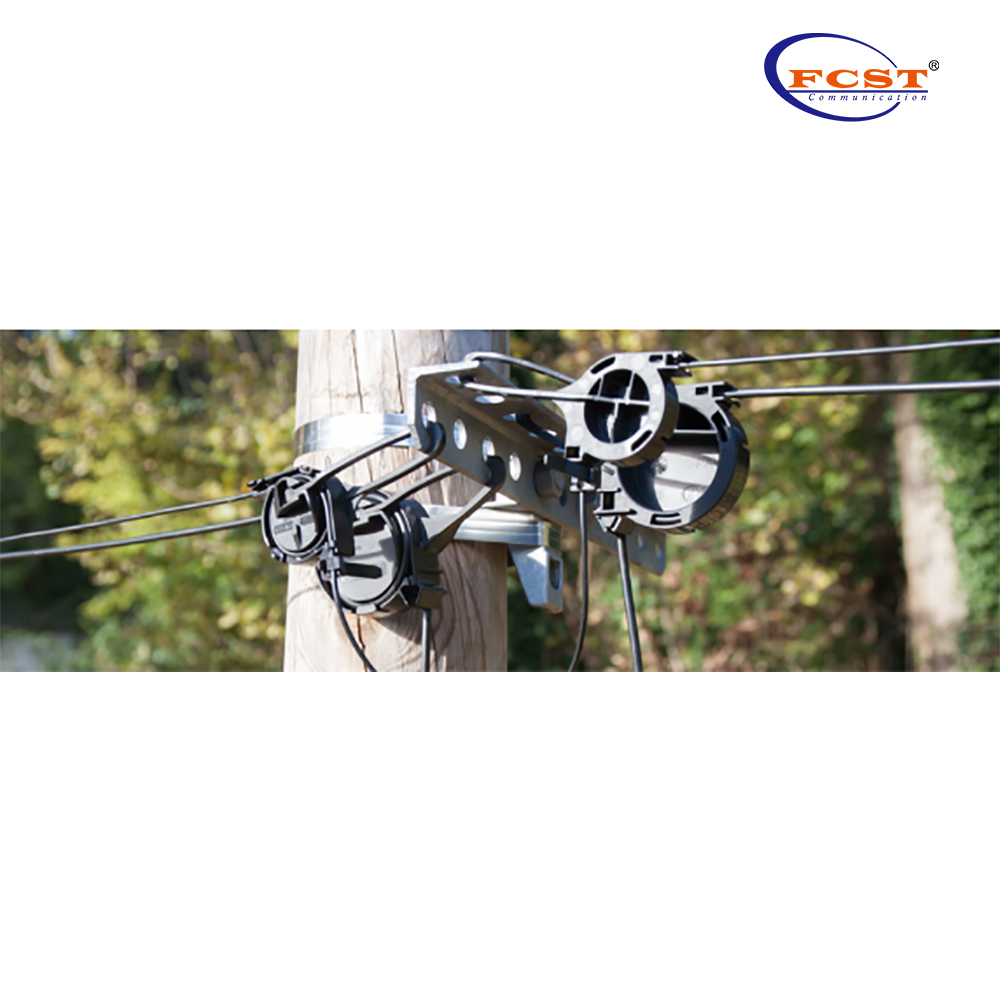

l Suspension of drop cable at intermediate poles by using 2 drop clamps.
l Capacity :φ2 to 6mm round cables.
Product Specifications
Construction | Description |
Applicable Cable Diameter（mm） | φ2 to 6 |
Material | PA66 Nylong |
Dimension (mm) | 140*91*34 |
Stretching Resistance（N） | 2000 |
Net Weight（g） | 50 |

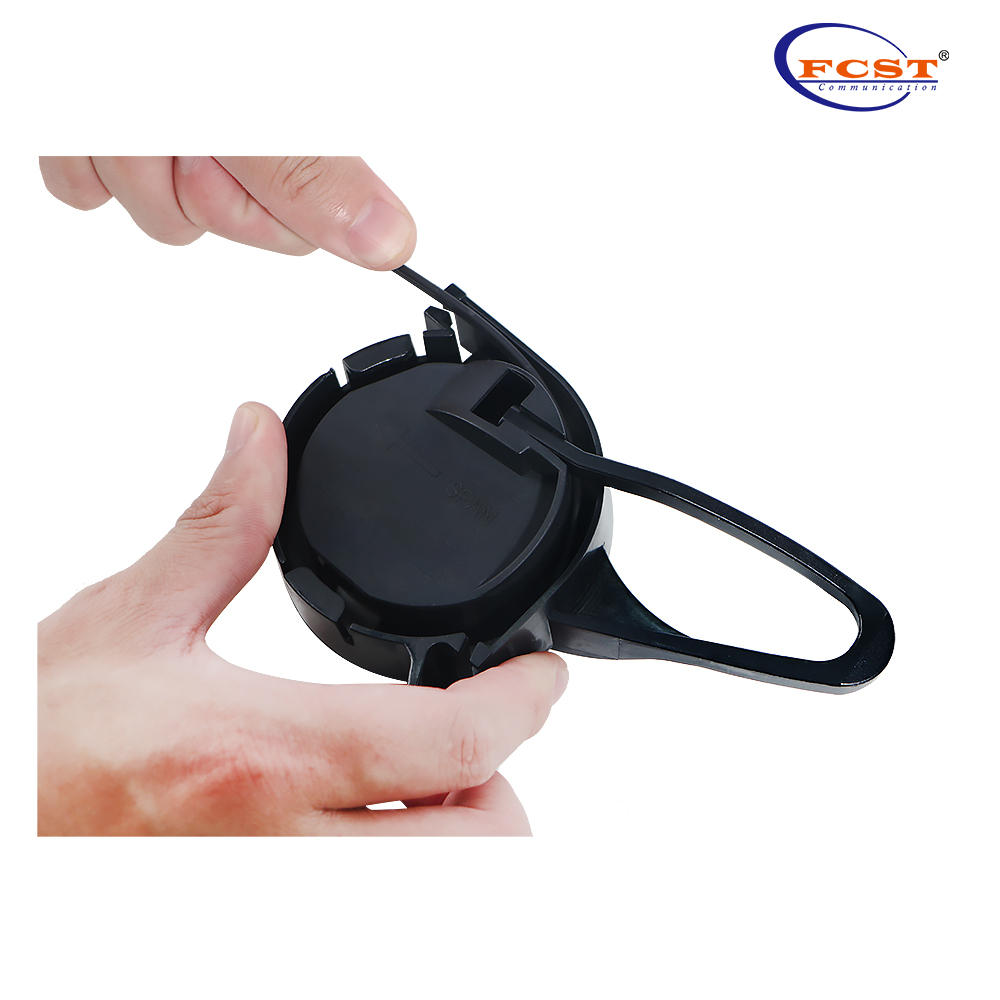

Installation Tutorial
